PGD3200XPM Post Driver

Name: PGD3200XPM Post Driver
Brand: Titan Post Drivers
SKU: PGD3200XPM
Availability: InStoreOnly

SKU: PGD3200XPM

The only Titan model capable of driving PostMaster and Lifetime posts. Powered by a Honda GX35 1.3hp, 4-stroke engine with a heavy-duty threaded, slotted steel barrel.

The PGD3200XPM is the only Titan model capable of driving PostMaster® and Lifetime® posts.

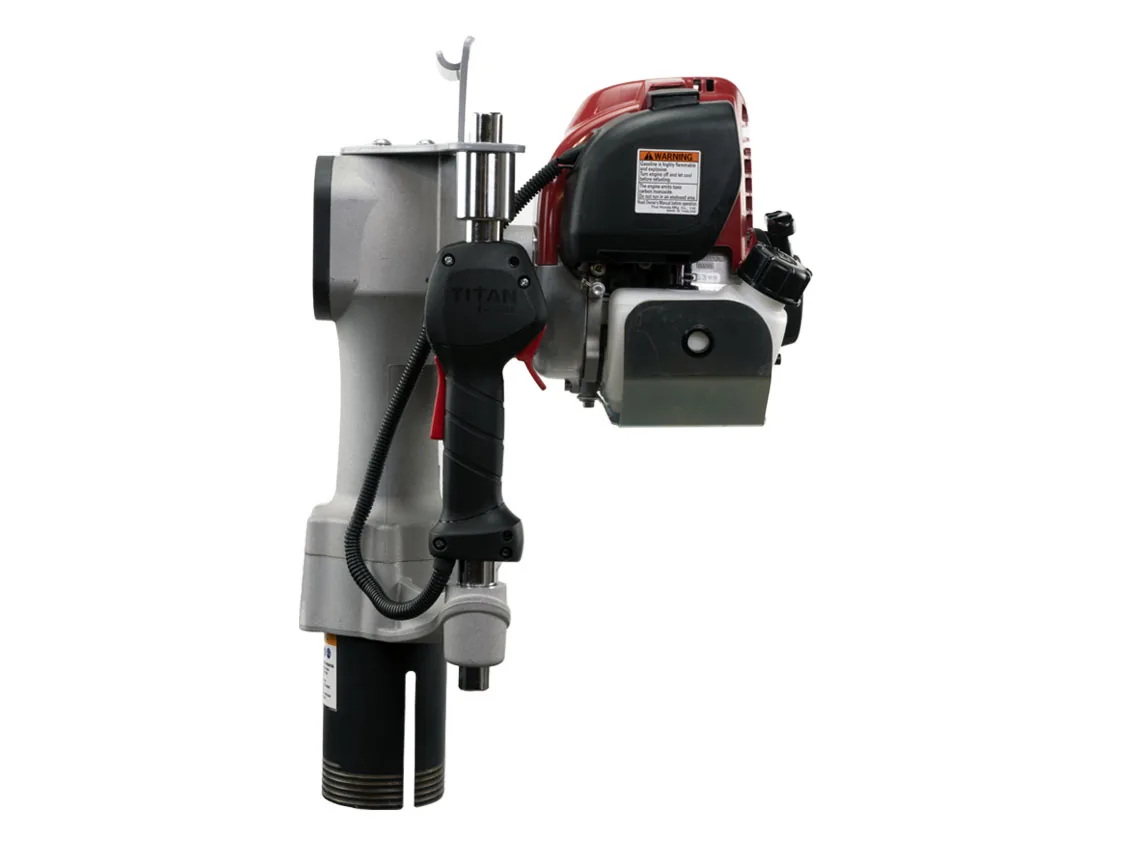

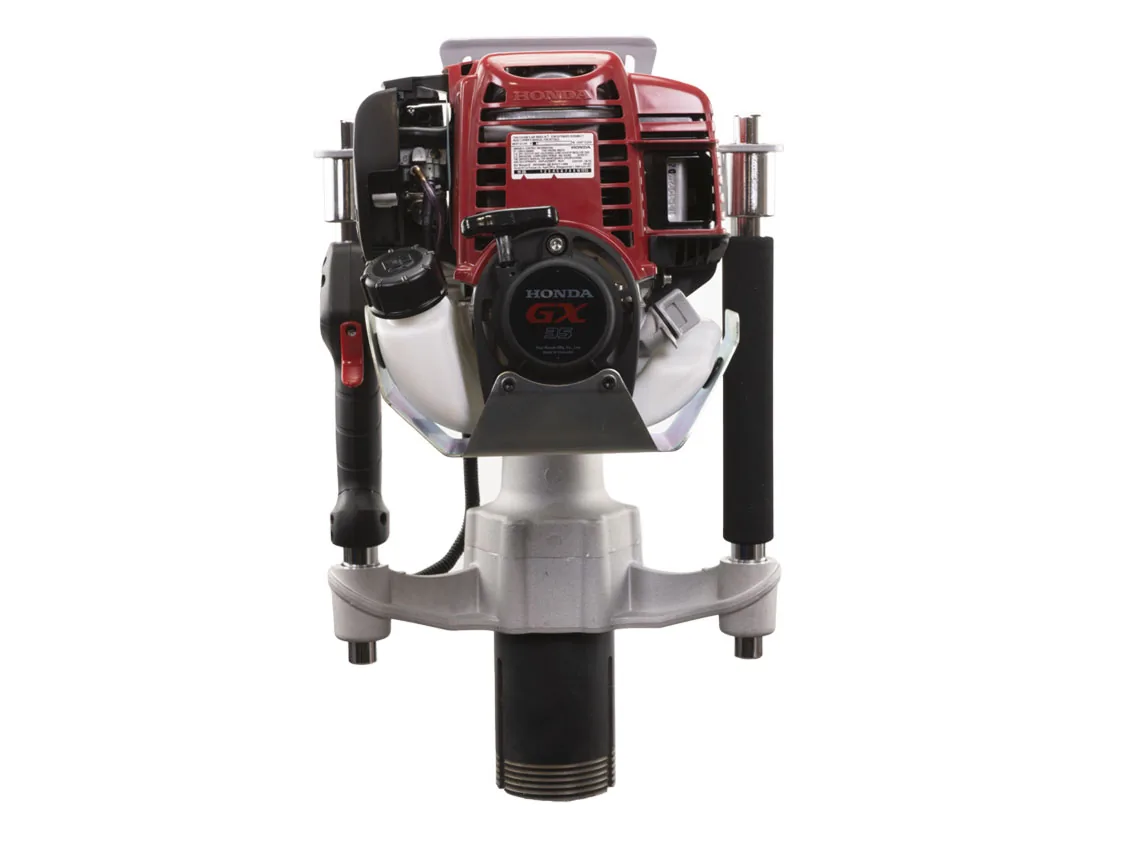

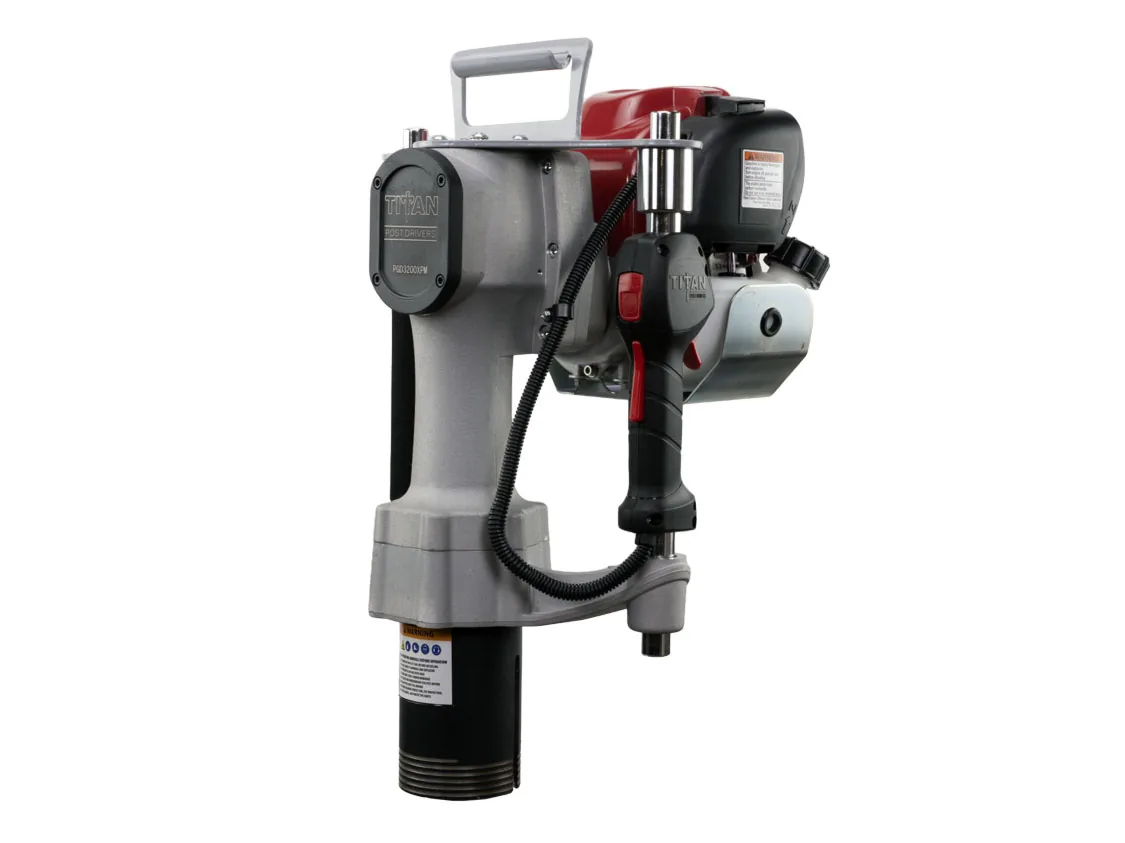

A powerful and portable commercial duty post driver. Powered by a Honda GX35 1.3hp, 4-stroke engine. The heavy-duty threaded, slotted steel barrel is designed specifically to accommodate PostMaster, PostMaster Plus, PostMaster®V3, and Lifetime posts. It can also accommodate pipe, rod and stakes up to 3 1/8" diameter.

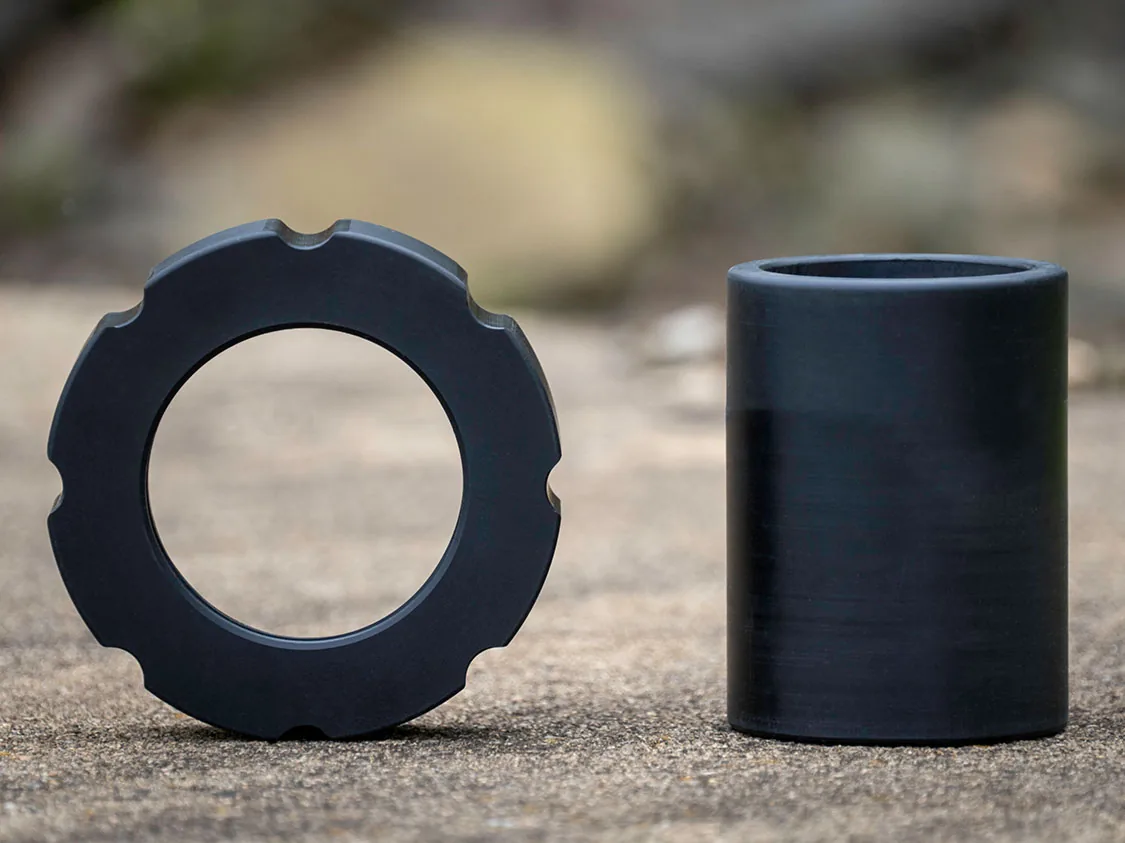

Spin barrel cap offers quick OFF/ON for secure adapter sleeve changes. Included is a PostMaster® Plus drive cap and 2 1/2" solid industrial grade poly adapter sleeve. Additional adapter sleeves are available in 1/2", 3/4", 1", 1 3/4", 2" & 2 1/4" sizes.

This post driver is 100% self-contained, easy to lift, move, and carry. No hoses or compressors are required. Drives posts in half the time with less physical effort than with a manual driver. Assembled and serviced in the USA.

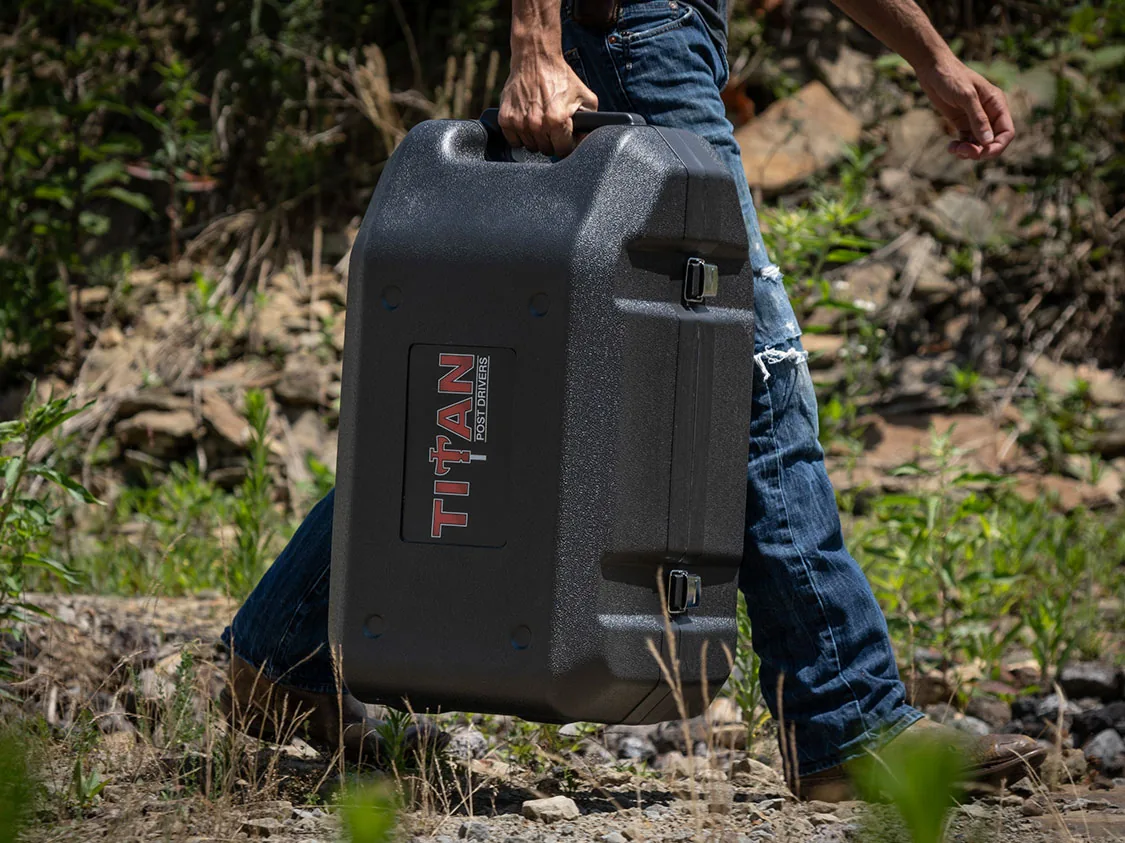

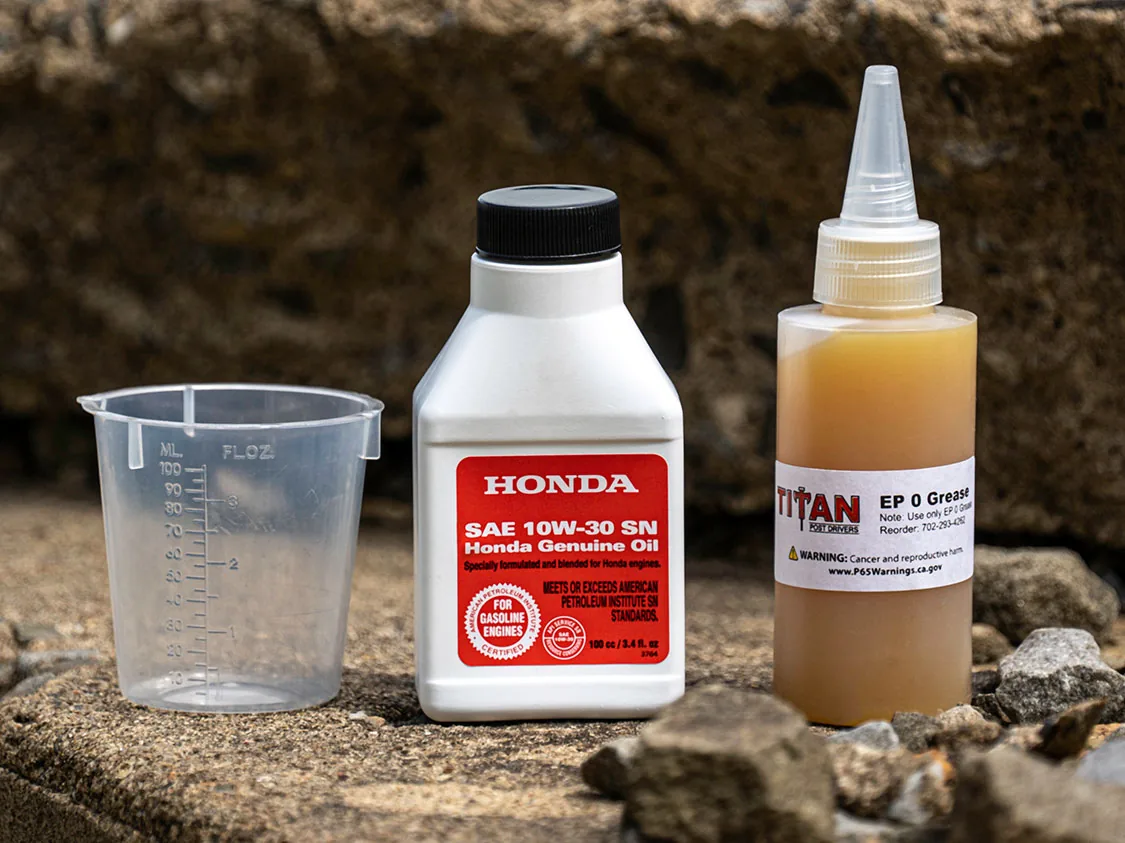

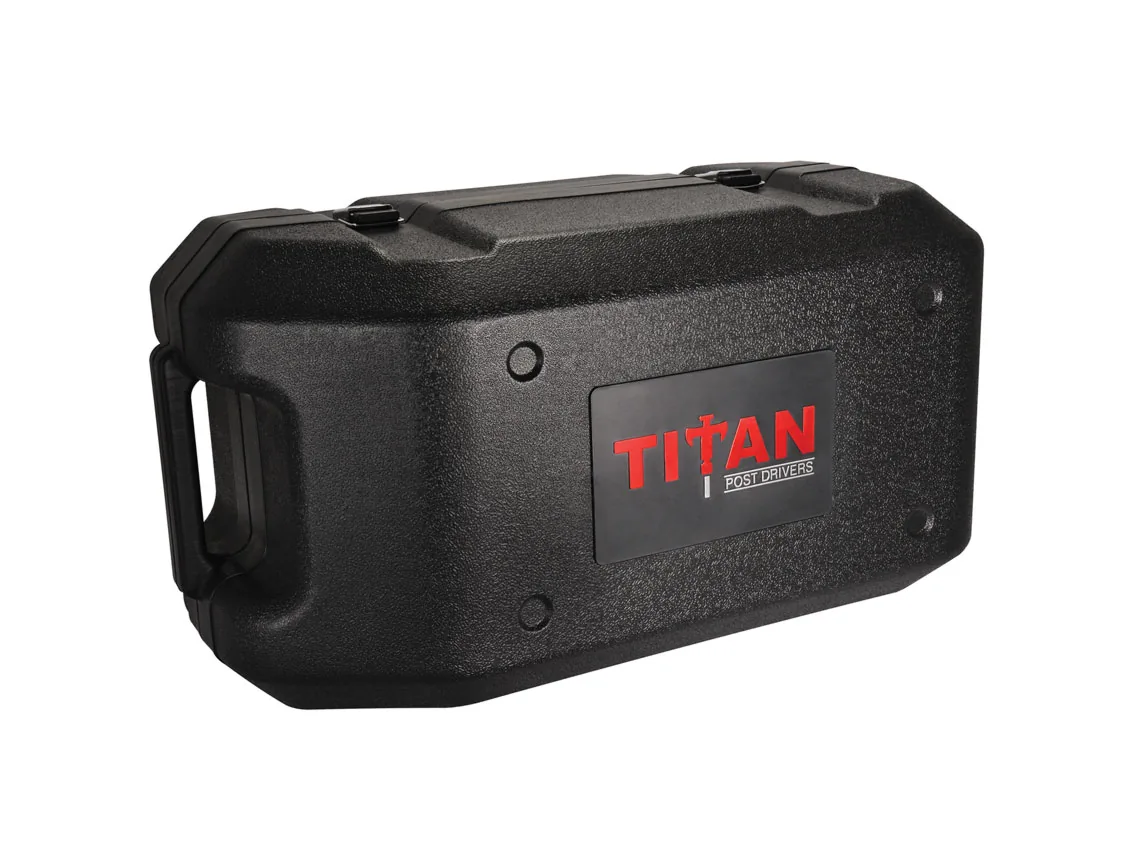

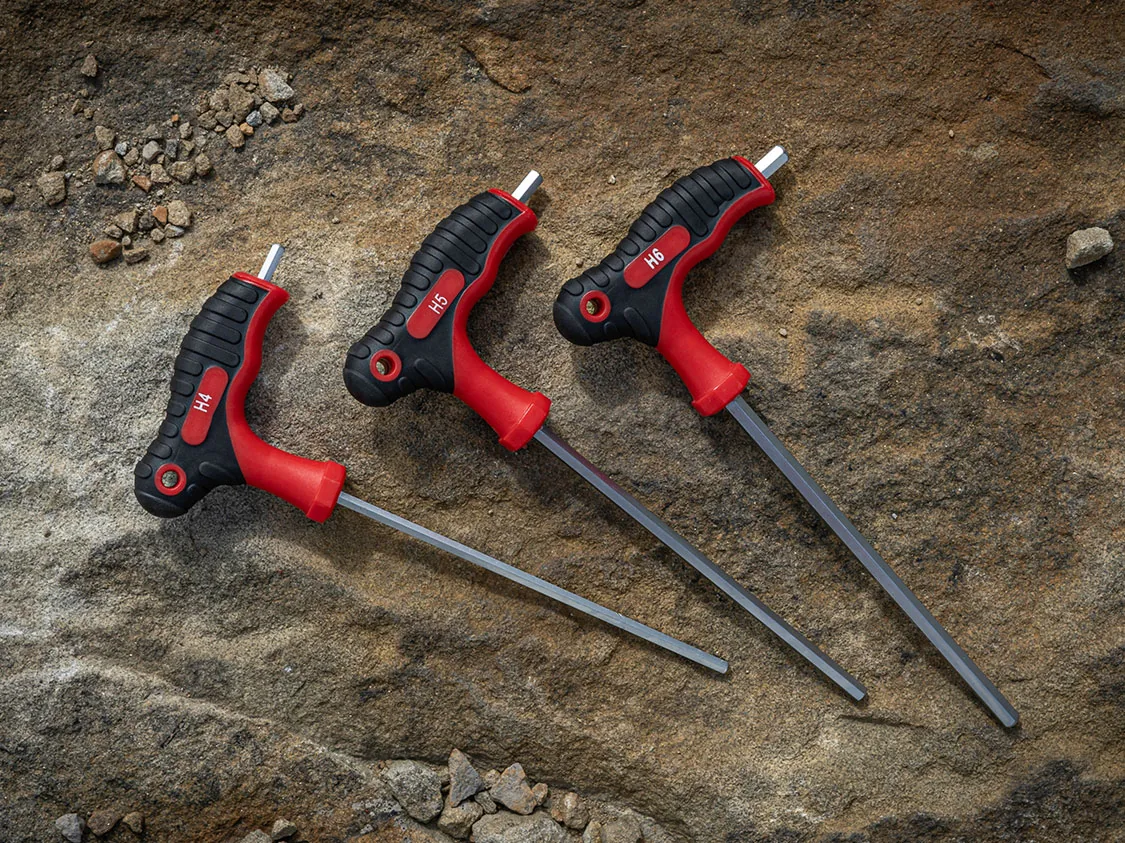

Comes complete with a sturdy poly carrying case, engine oil, extra lube, 2-sided PostMaster®/Lifetime® drive cap, 2 1/2" adapter sleeve, and a tool kit.

Key Features

Only Titan model for PostMaster and Lifetime posts
X Series - commercial duty driver
Self-contained, powerful and portable at 45 lbs
Honda GX35 1.3 hp, 4-stroke engine

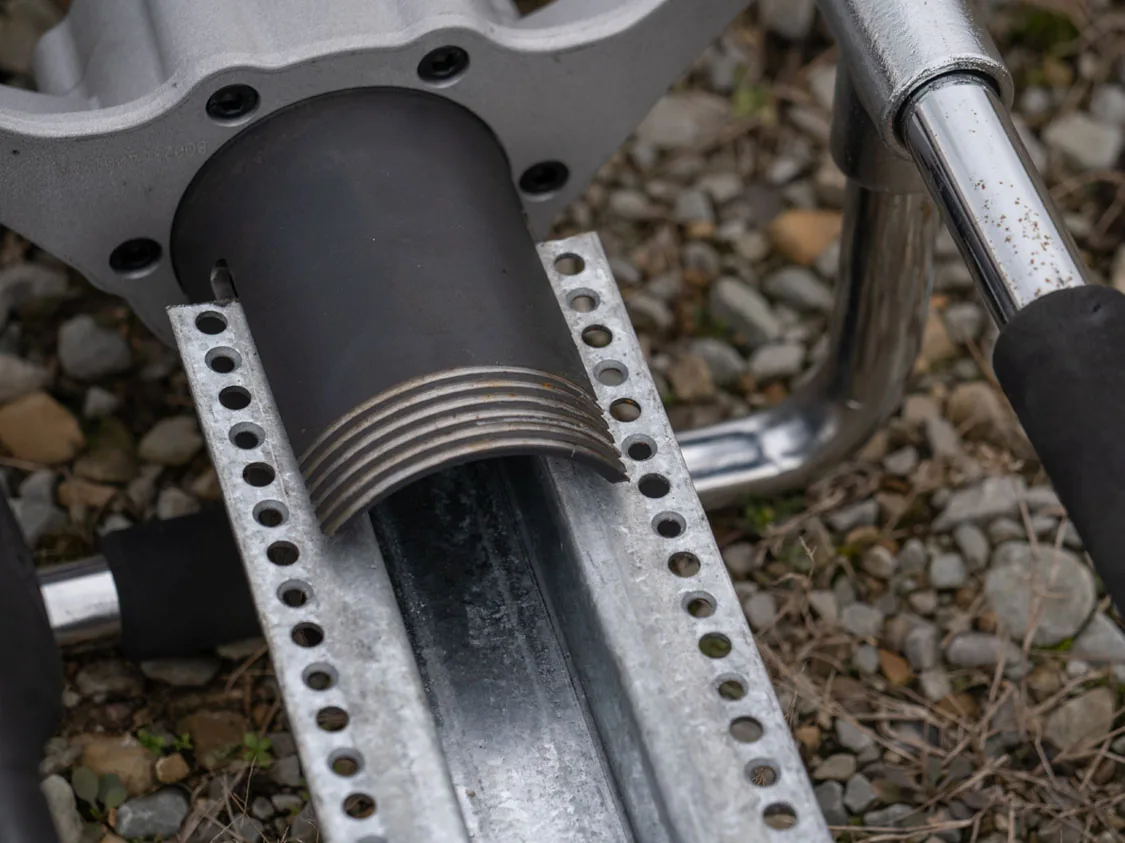

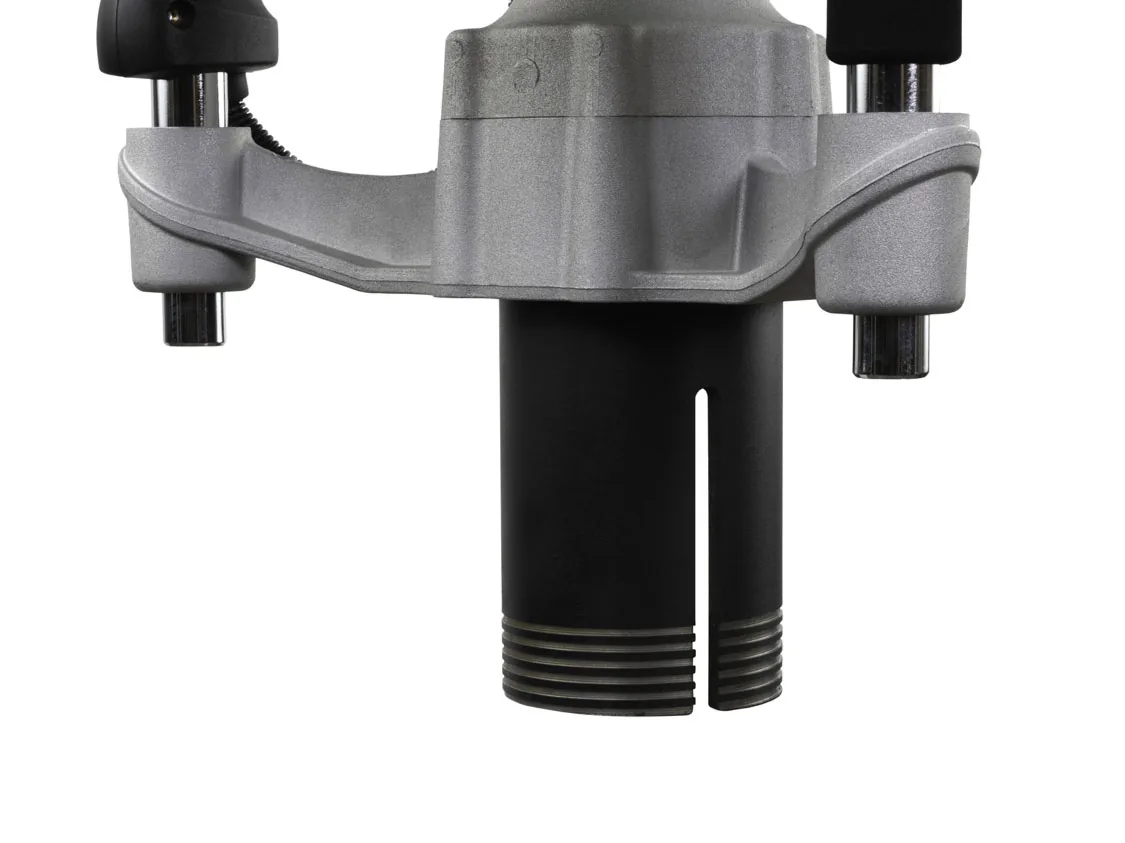

Heavy-duty threaded, slotted barrel
Up to 1,850 beats-per-minute

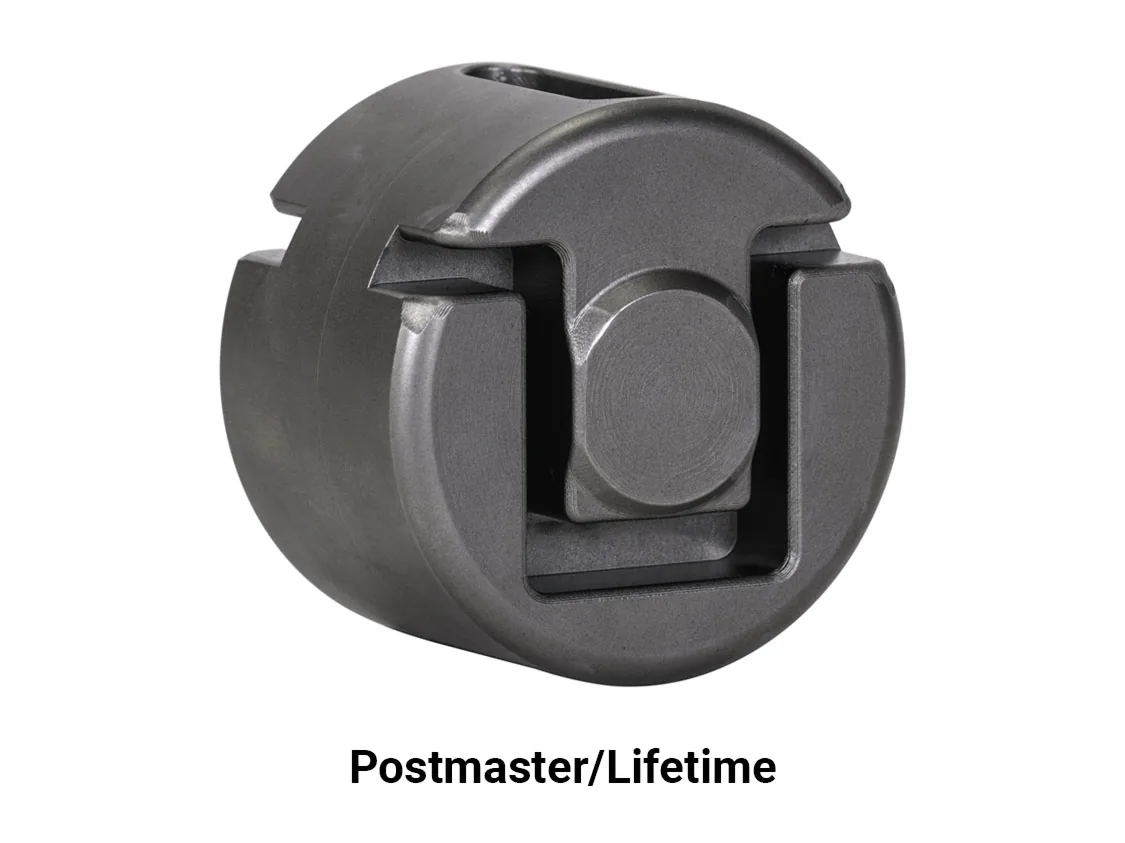

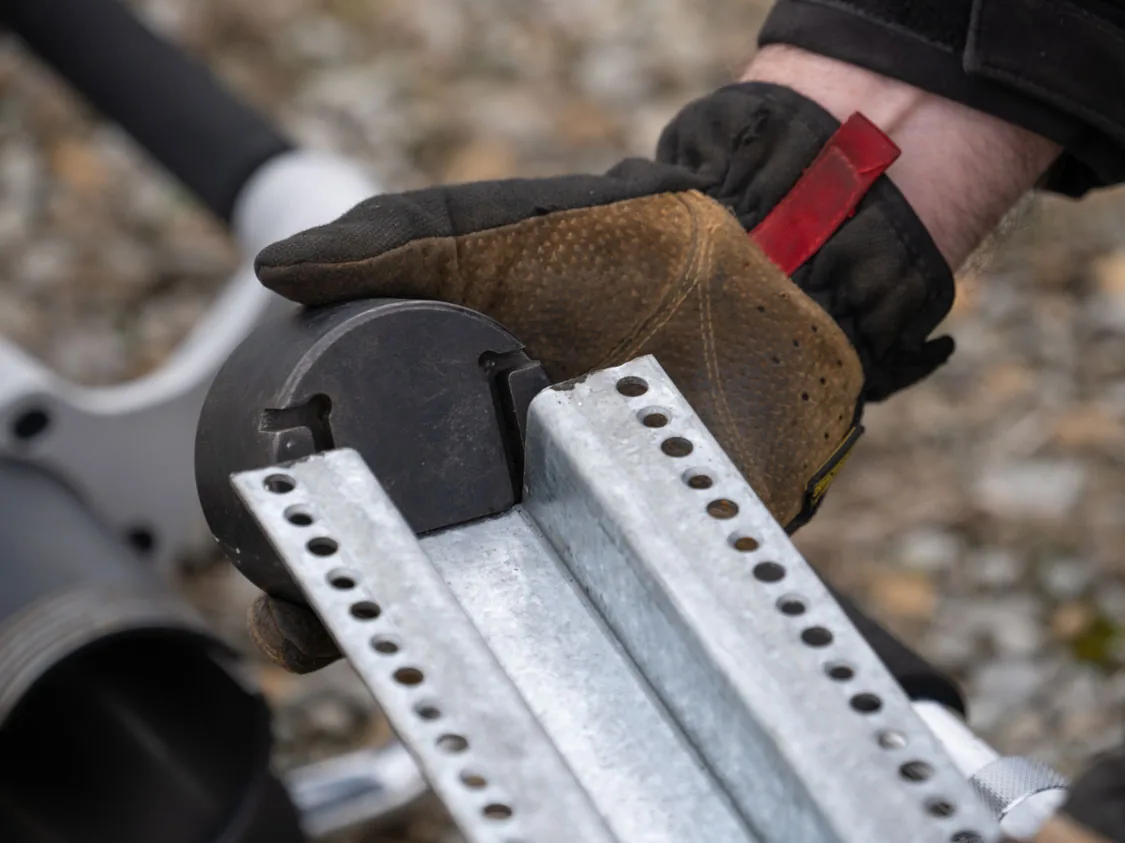

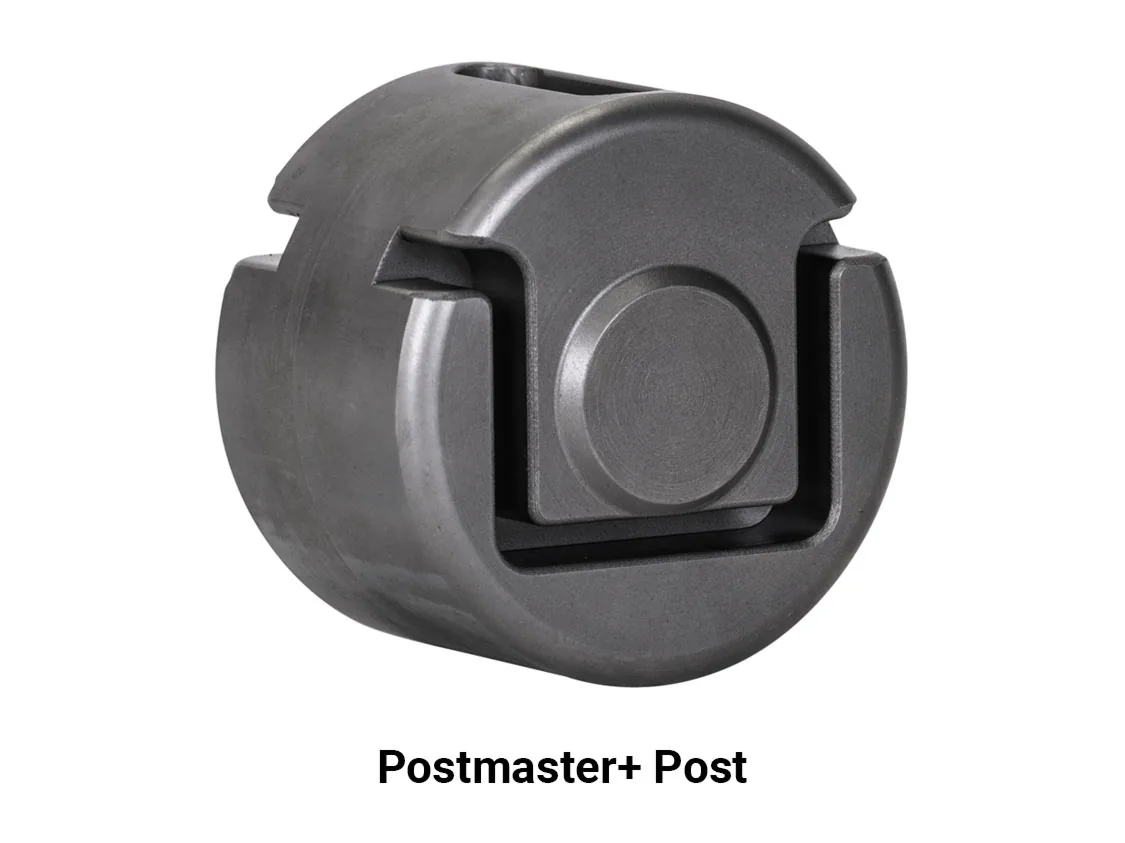

Includes 2-sided PostMaster/Lifetime drive cap
X Series lets you customize with handle kits
High-quality sealed bearings and Viton O-rings
Internal dampening springs to reduce vibration

Find a Dealer Ask a Question

Already own this product? Register your warranty →

Products sold through authorized dealers only. View all dealers →

Specifications & Resources

EngineHonda GX35 1.3 hp

Engine Type4-Stroke Gasoline

Weight45 lbs

Beats Per MinuteUp to 1,850

Max Post Diameter3 1/8"

Special FeaturePostMaster/Lifetime compatible

Operation100% Self-Contained

Included Sleeve2 1/2" poly + PostMaster drive cap

WarrantyLimited lifetime on hammer

Downloads

PDF

PGD3200XPM Post Driver Owner's Manual

Owner's Manual · PDF

Download

Disclaimer

*The power rating of the engine indicated in this document is the net power output tested on a production engine for the engine model and measured in accordance with SAE J1349 at 3600 rpm. Mass production engines may vary from this value. Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine application, environmental conditions, maintenance, and other variables. Note: M4 engines are rated at 7000 rpm.
