Contractor Series

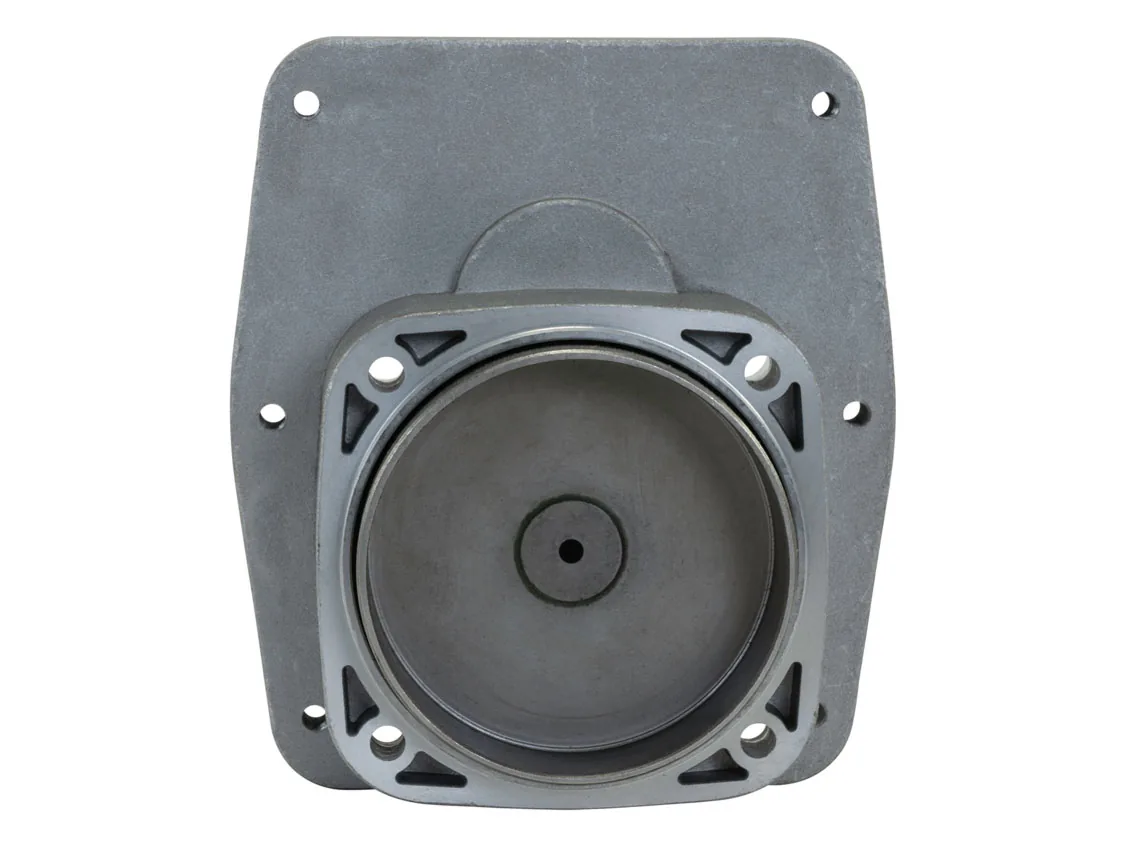

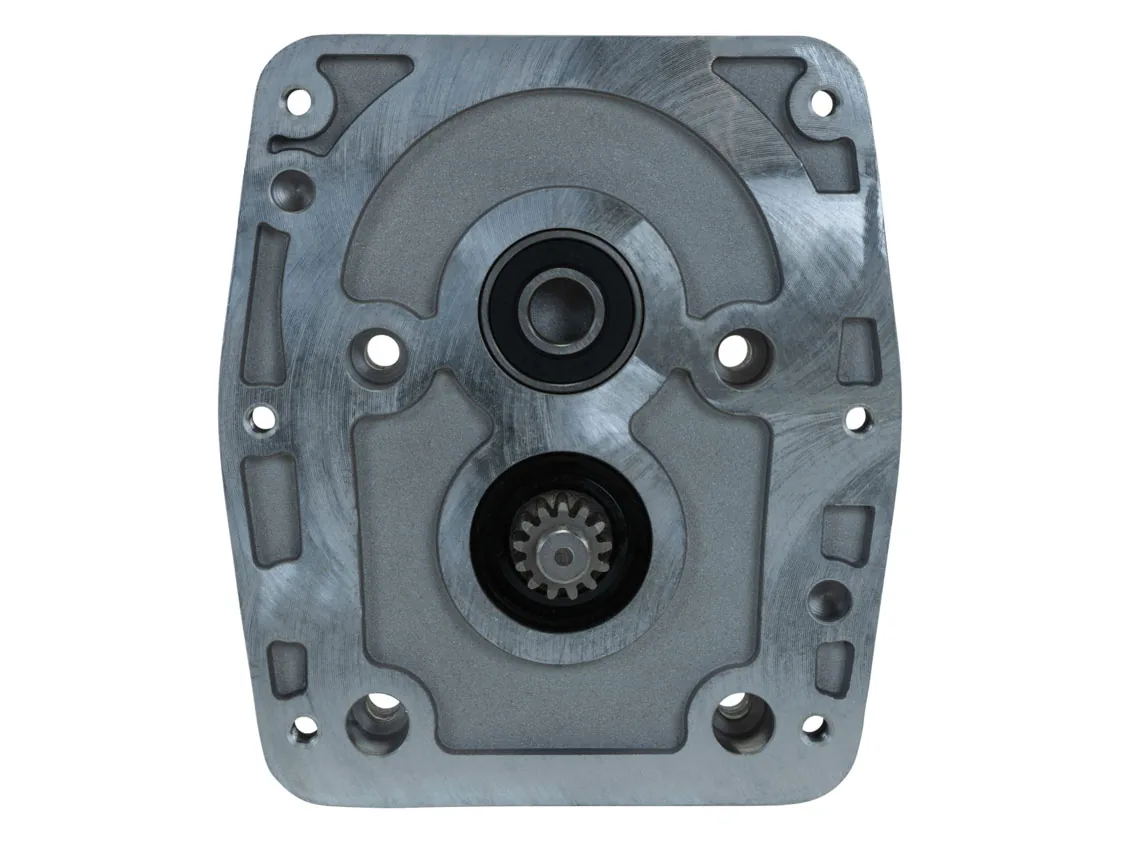

3200 Series Clutch Assembly

SKU: PGDMCHKIT

Complete clutch body assembly for PGD3200, PGD3200X, and PGD3200XPM. Bearings pre-installed.

Complete clutch body assembly for PGD3200, PGD3200X and PGD3200XPM drivers. Bearings are pressed in at factory for proper alignment. No assembly required.

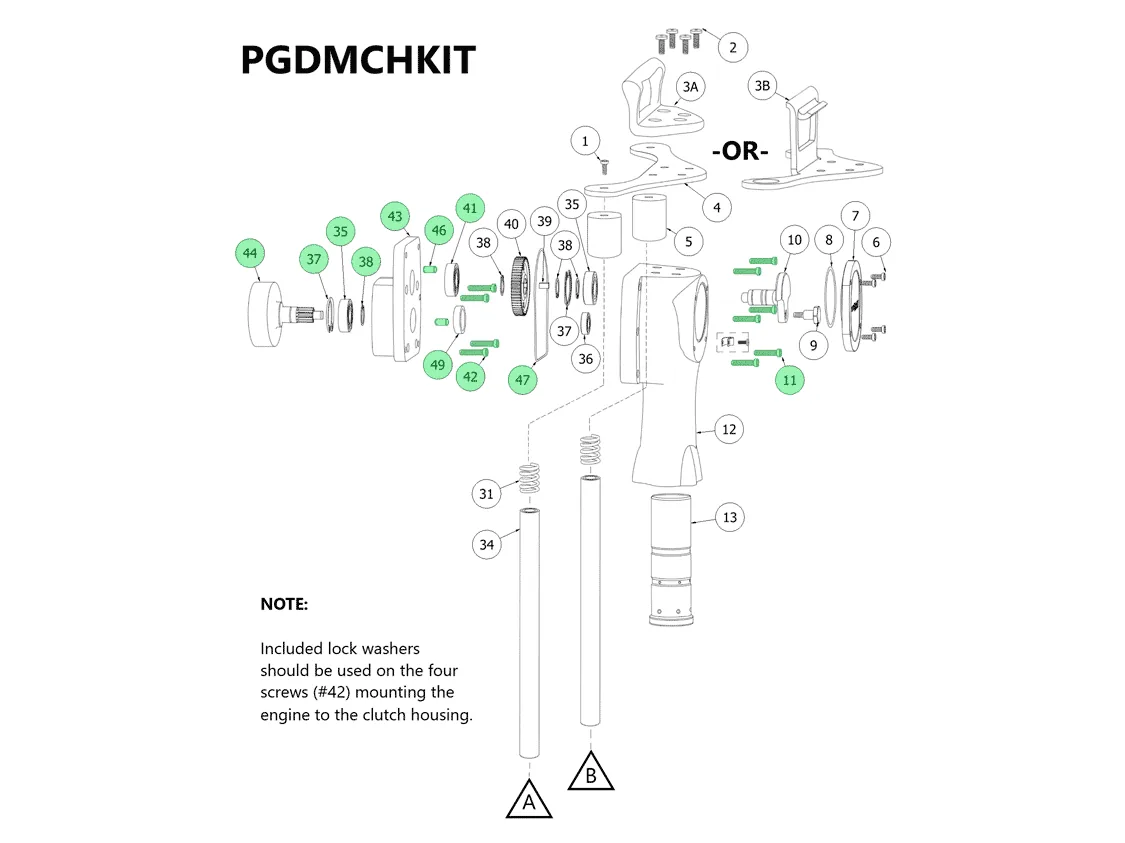

- M6×30 socket head cap screw (10 ea. — 4x housing to engine, 6x housing to upper body) - 6004-2RS bearing - 42mm snap ring - 20mm snap ring - 6201-2RS bearing - Clutch housing - Clutch drum - Alignment pin (pk 2) - Gasket clutch to body - Oil seal

Compatible With

PGD3200, PGD3200X, PGD3200XPM

How to Order

Parts are available through authorized Titan dealers. Reference the part number above when contacting your dealer.

Find a Dealer Ask a Question

Back to Parts

Compatible Drivers

Works With These Products

Compatible Drivers

(3)

X-Series

PGD3200X Post Driver

SKU: PGD3200X

A powerful and portable commercial duty post driver. Powered by a Honda GX35 1.3hp, 4-stroke engine. The heavy-duty threaded steel barrel accommodates up to 3 1/8" diameter post, pipe, rod, or stake.

View Details

X-Series

PGD3200XPM Post Driver

SKU: PGD3200XPM

The only Titan model capable of driving PostMaster and Lifetime posts. Powered by a Honda GX35 1.3hp, 4-stroke engine with a heavy-duty threaded, slotted steel barrel.

View Details

Contractor Series

PGD3200 Post Driver

SKU: PGD3200

A powerful and portable commercial duty post driver. Powered by a Honda GX35 1.3hp, 4-stroke engine. The heavy-duty steel barrel accommodates up to 3 1/8" diameter post, pipe, rod, or stake.

View Details

Looking for a driver? Browse all products or find a dealer near you.
