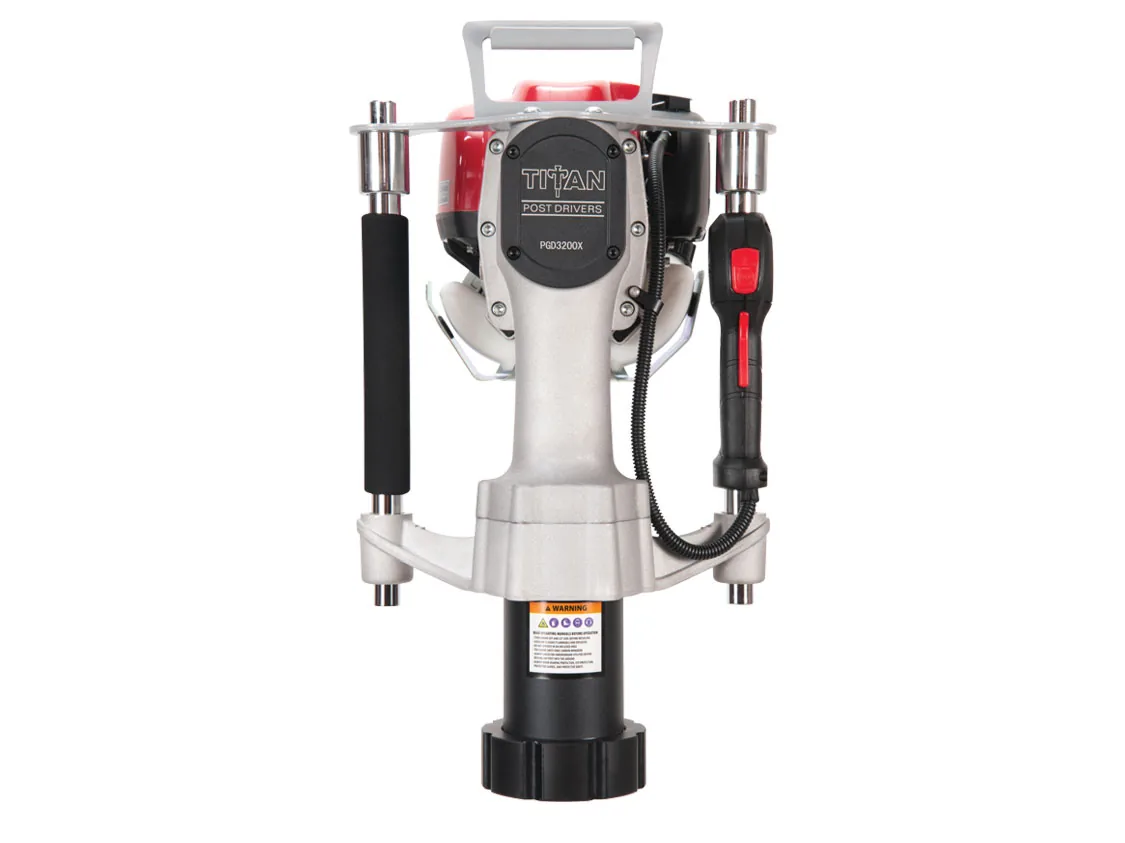

PGD3200X Post Driver

Name: PGD3200X Post Driver
Brand: Titan Post Drivers
SKU: PGD3200X
Availability: InStoreOnly
Rating: 5.0 (1 reviews)

SKU: PGD3200X

5.0(1 review)

A powerful and portable commercial duty post driver. Powered by a Honda GX35 1.3hp, 4-stroke engine. The heavy-duty threaded steel barrel accommodates up to 3 1/8" diameter post, pipe, rod, or stake.

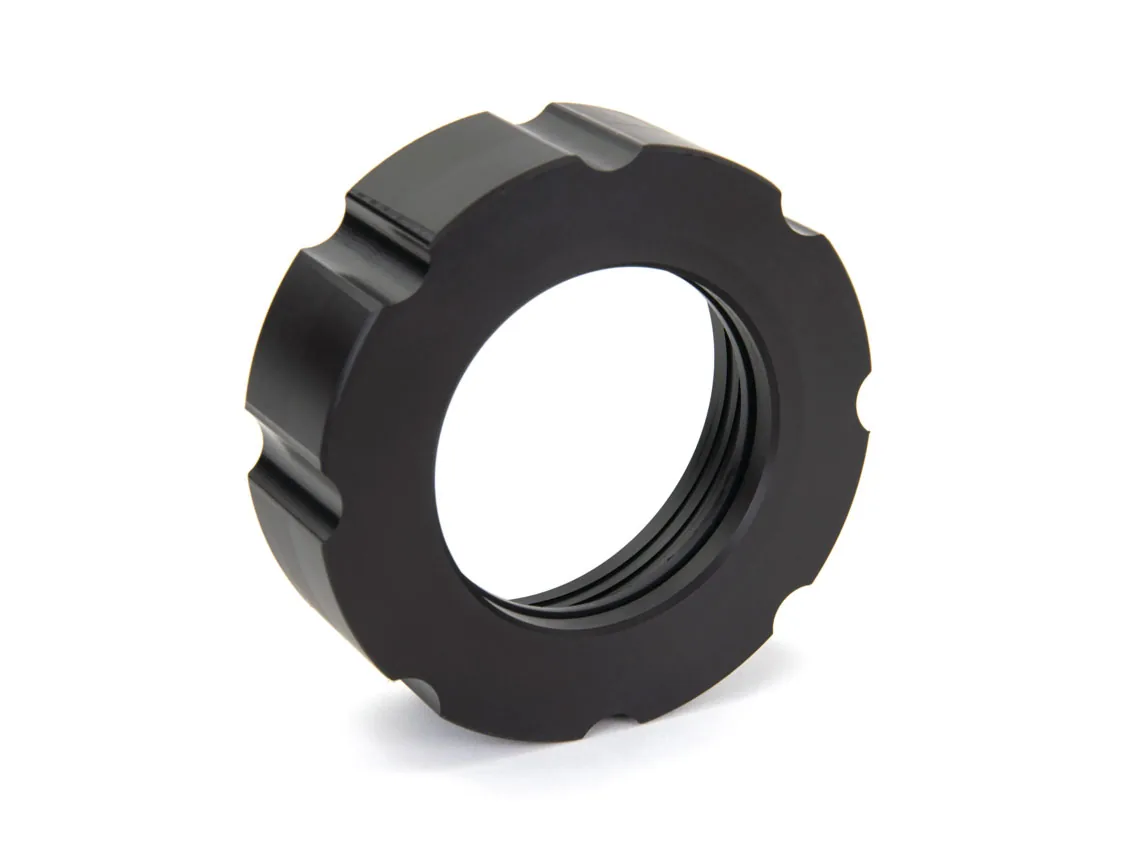

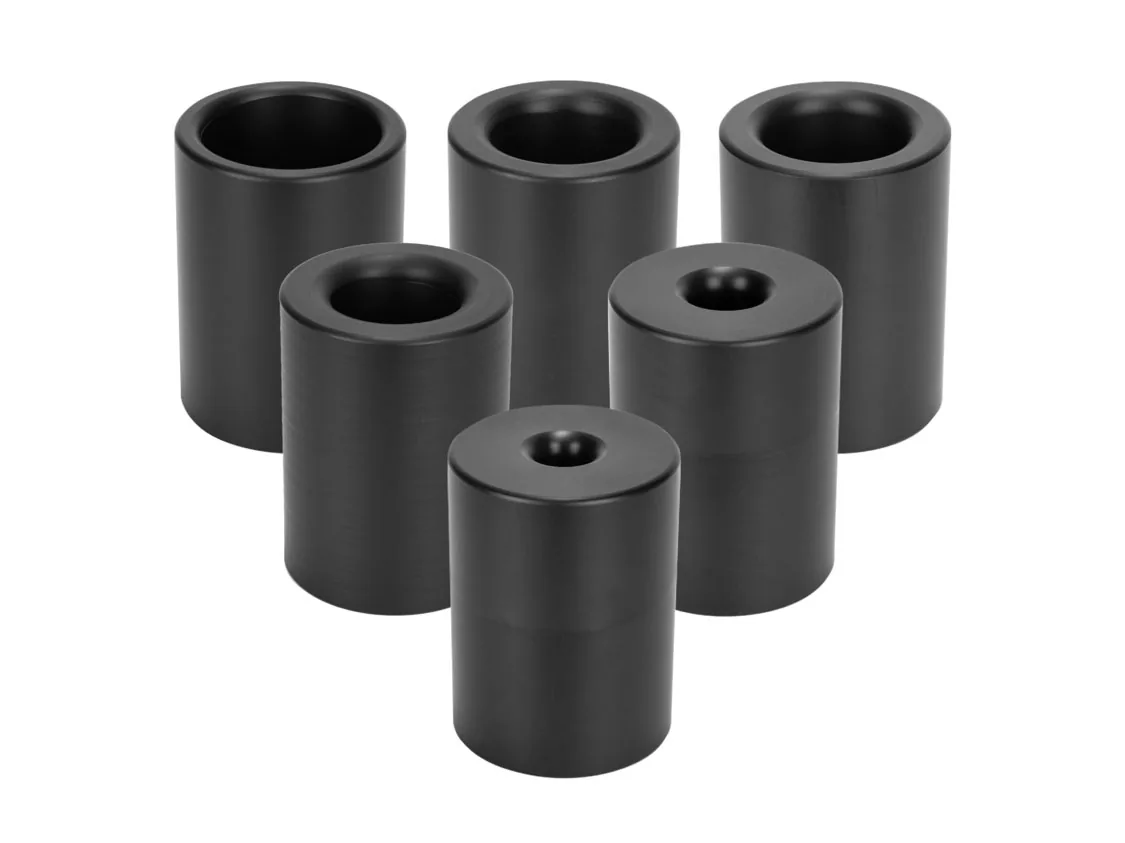

A powerful and portable commercial duty post driver. Powered by a Honda GX35 1.3hp, 4-stroke engine. The heavy-duty threaded steel barrel accommodates up to 3 1/8" diameter post, pipe, rod, or stake. The spin barrel cap offers quick OFF/ON for secure adapter sleeve changes. Included is a 2 1/2" solid industrial grade poly adapter sleeve. Additional adapter sleeves are available in 1/2", 3/4", 1", 1 3/4", 2" & 2 1/4" sizes.

This post driver is 100% self-contained, easy to lift, move, and carry. No hoses or compressors are required. It drives posts in half the time with less physical effort than with a manual driver. Assembled and serviced in the USA.

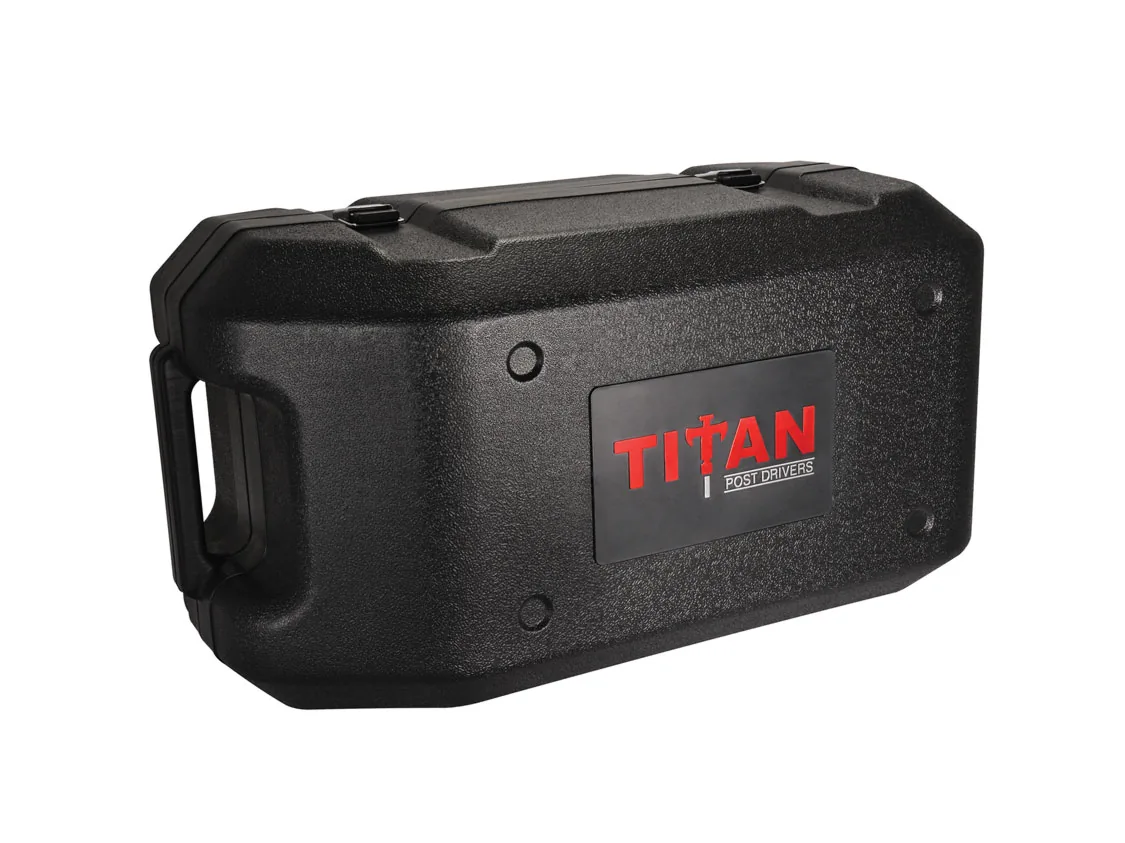

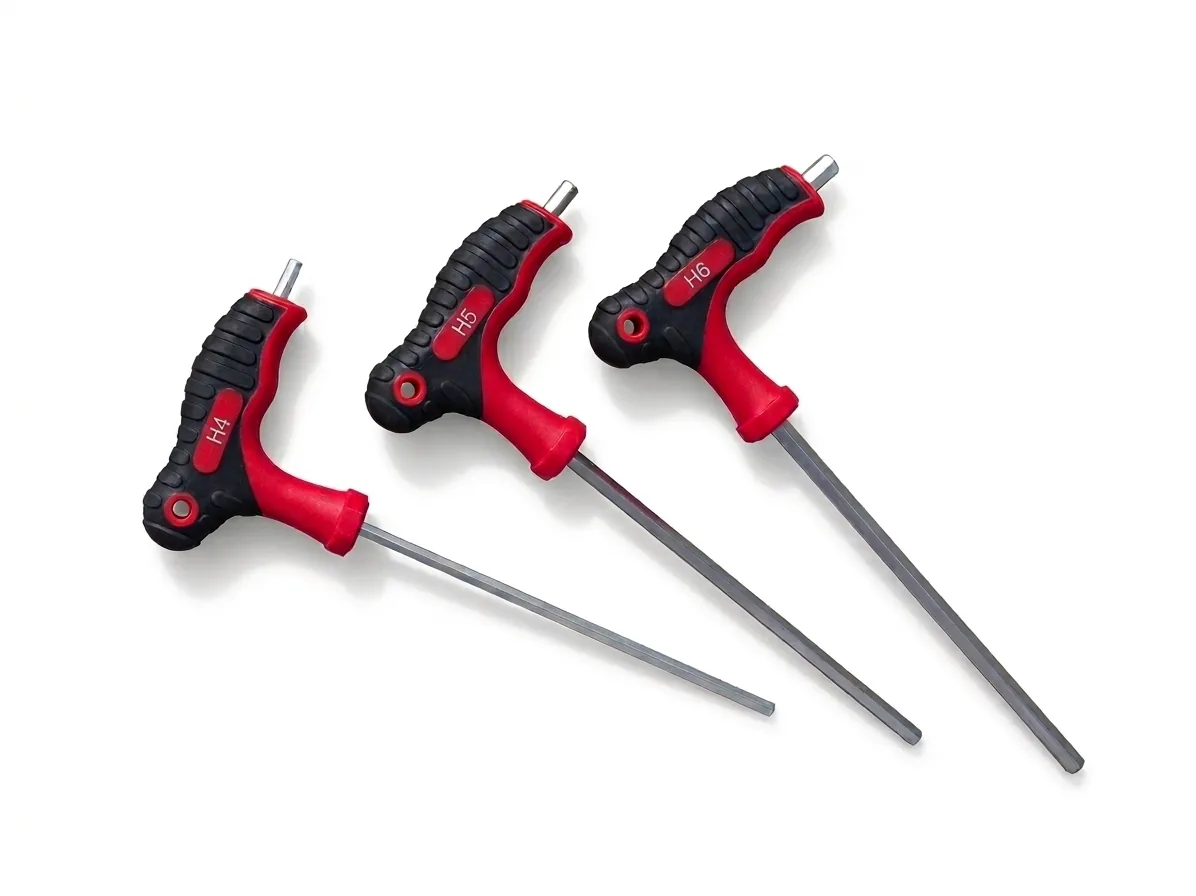

Comes complete with a sturdy, poly carrying case; engine oil; extra lube, 2 1/2" adapter sleeve; and tool kit.

Key Features

X Series - commercial duty driver
Self-contained, powerful, and portable at 45 lbs
Honda GX35 1.3 hp, 4-stroke engine
Heavy-duty threaded barrel
Up to 1,850 beats per minute
X Series allows customized handle kits
Accommodates material up to 3 1/8" diameter

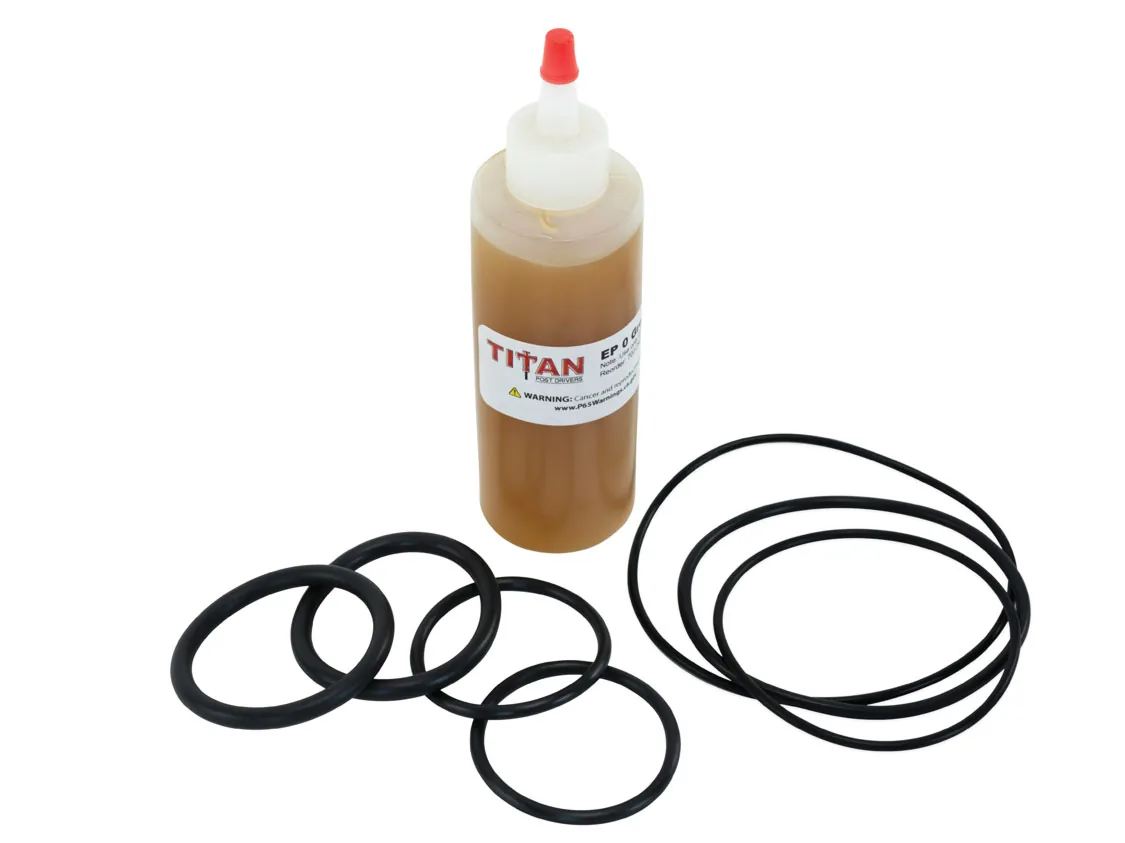

High-quality sealed bearings and Viton O-rings
Internal dampening springs to reduce vibration

Find a Dealer Ask a Question

Already own this product? Register your warranty →

Products sold through authorized dealers only. View all dealers →

Specifications & Resources

EngineHonda GX35 1.3 hp

Engine Type4-Stroke Gasoline

Weight45 lbs

Beats Per MinuteUp to 1,850

Max Post Diameter3 1/8"

Operation100% Self-Contained

Included Sleeve2 1/2" solid industrial grade poly

WarrantyLimited lifetime on hammer

Downloads

PDF

PGD3200X Post Driver Owner's Manual

Owner's Manual · PDF

Download

Disclaimer

*The power rating of the engine indicated in this document is the net power output tested on a production engine for the engine model and measured in accordance with SAE J1349 at 3600 rpm. Mass production engines may vary from this value. Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine application, environmental conditions, maintenance, and other variables. Note: M4 engines are rated at 7000 rpm.

Videos

Titan PGD3200X - Rise Above The Competition

Product Videos

How-To Videos

Customer Reviews(1)

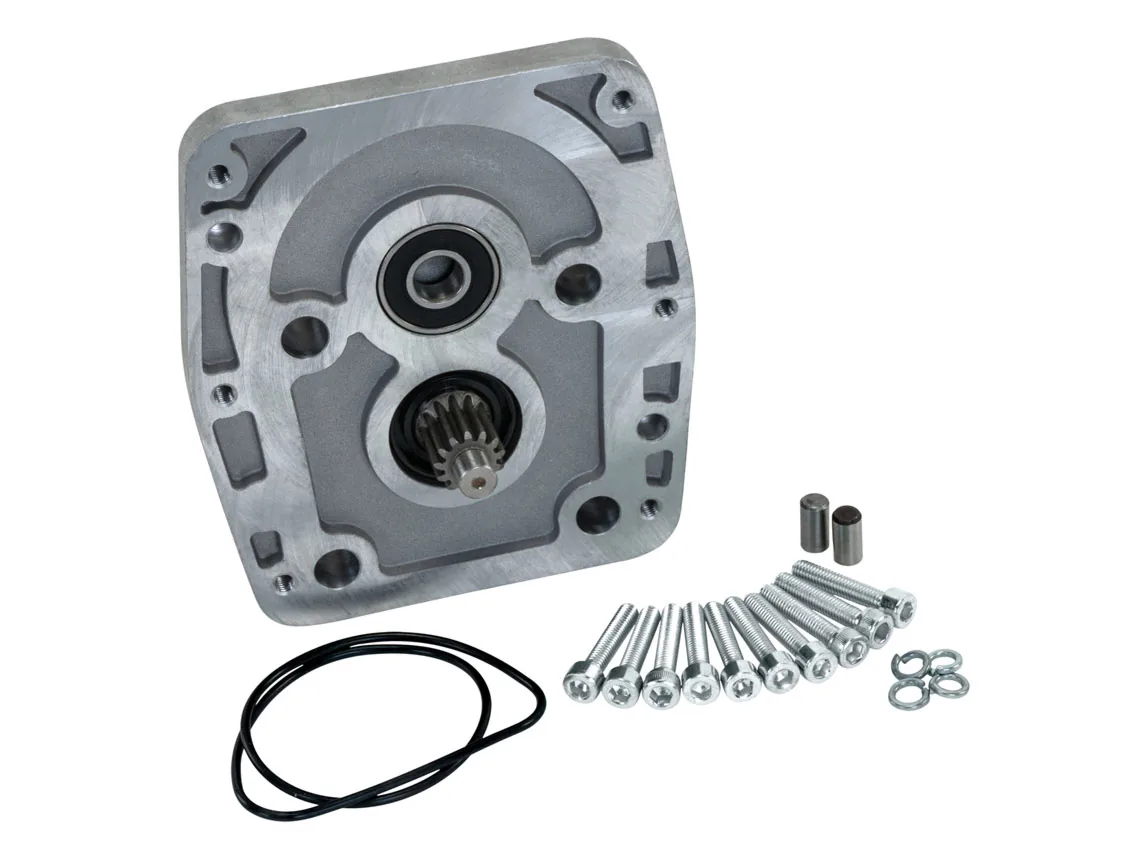

“Ripped the teeth off my clutch gear in the middle of a job. Express shipped Friday, back in business Monday afternoon.”

Casey Cox

Verified

Own this product? Share your experience.

Write a Review

Works With The PGD3200X Post Driver

All AccessoriesAll Parts

Accessories

(8)

transport-carts

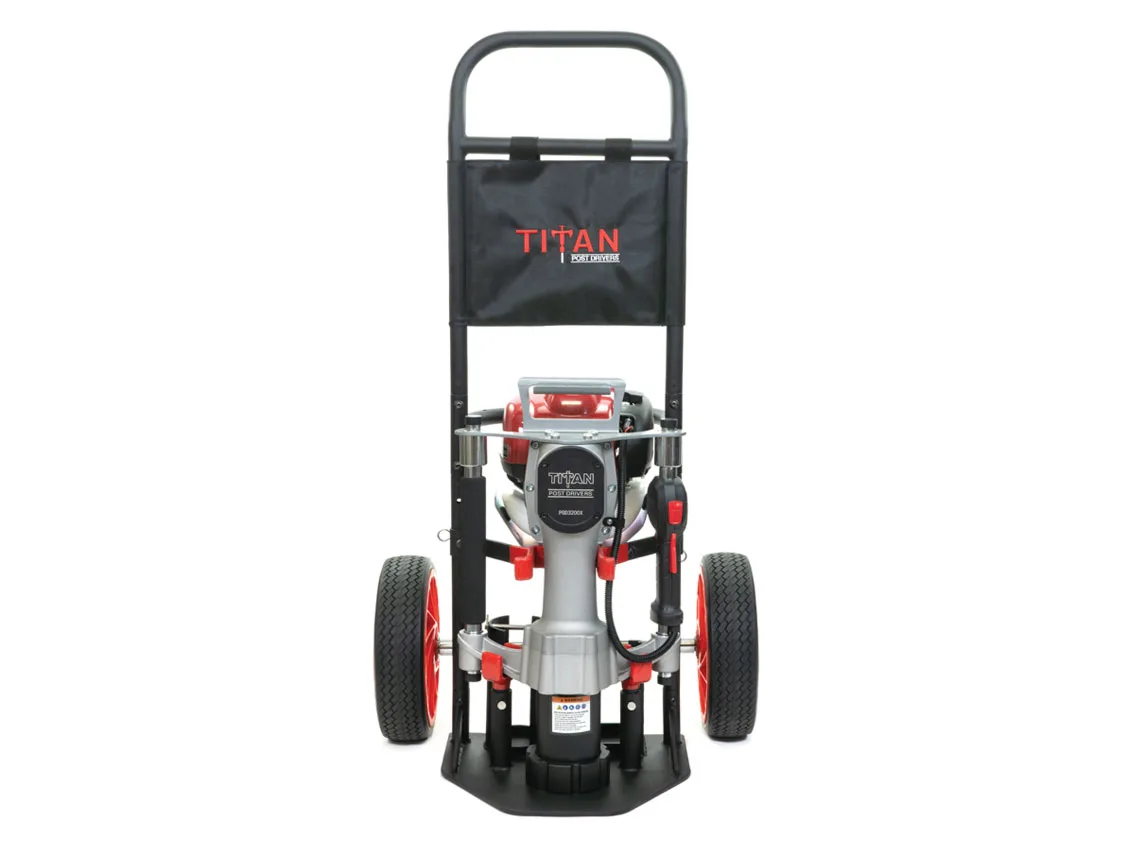

Post Driver Transport Cart

SKU: PGDCTSATC

Transport and display your X-Series driver with everything you need for the job.

Fits: PGD2000X, PGD3200X, PGD3200XPM, PGD40XPKG-DOT, PGD40XPKG-PFR
