Crank Assembly Kit — Contractor Series — view 1

Contractor Series

Crank Assembly Kit — Contractor Series

SKU: PGDCRKIT

All parts required to replace the crank assembly on contractor series drivers.

All parts required to replace the crank assembly on PGD2000, PGD2000X, PGD3200, PGD3200X & PGD3200XPM drivers.

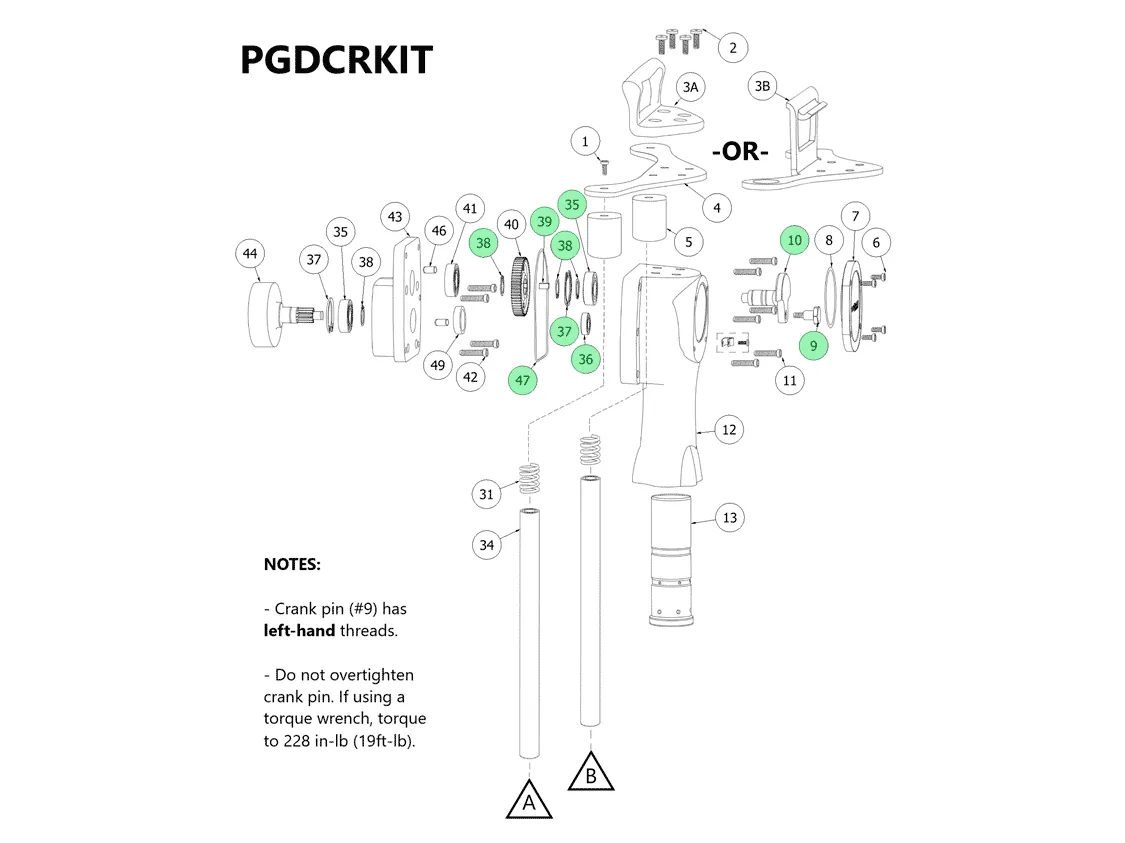

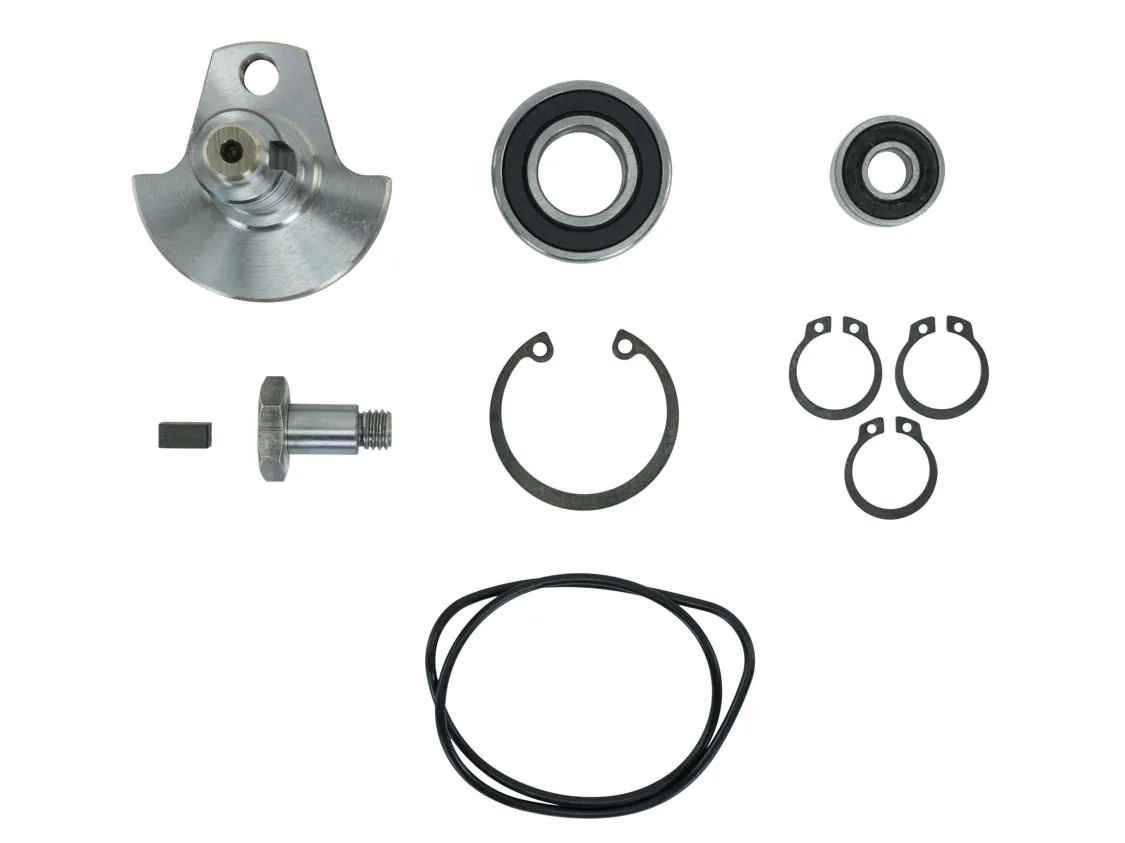

- Crank pin - Crank shaft - 6004-2RS bearing - 6000-2RS bearing - 42mm snap ring - 20mm snap ring (3 ea.) - Key 6x6x12 - Gasket clutch to body

Compatible With

PGD2000, PGD2000X, PGD3200, PGD3200X, PGD3200XPM

How to Order

Parts are available through authorized Titan dealers. Reference the part number above when contacting your dealer.

Find a DealerAsk a Question
Back to Parts

Compatible Drivers

Works With These Products

Compatible Drivers

(5)
PGD2000 Post Driver

Contractor Series

PGD2000 Post Driver

SKU: PGD2000

A powerful and portable commercial-duty post driver. Powered by a Honda GX35 1.3hp, 4-stroke engine. The heavy-duty steel barrel accommodates up to 1 7/8" diameter post, pipe, rod, or stake.

View Details
PGD2000X Post Driver

X-Series

PGD2000X Post Driver

SKU: PGD2000X

A powerful and portable commercial duty post driver, powered by a Honda GX35 1.3hp, 4-stroke engine. The heavy-duty threaded steel barrel accommodates up to 1 7/8" diameter post, pipe, rod, or stakes.

View Details
PGD3200X Post Driver

X-Series

PGD3200X Post Driver

SKU: PGD3200X

A powerful and portable commercial duty post driver. Powered by a Honda GX35 1.3hp, 4-stroke engine. The heavy-duty threaded steel barrel accommodates up to 3 1/8" diameter post, pipe, rod, or stake.

View Details
PGD3200XPM Post Driver

X-Series

PGD3200XPM Post Driver

SKU: PGD3200XPM

The only Titan model capable of driving PostMaster and Lifetime posts. Powered by a Honda GX35 1.3hp, 4-stroke engine with a heavy-duty threaded, slotted steel barrel.

View Details
PGD3200 Post Driver

Contractor Series

PGD3200 Post Driver

SKU: PGD3200

A powerful and portable commercial duty post driver. Powered by a Honda GX35 1.3hp, 4-stroke engine. The heavy-duty steel barrel accommodates up to 3 1/8" diameter post, pipe, rod, or stake.

View Details

Looking for a driver? Browse all products or find a dealer near you.
