New

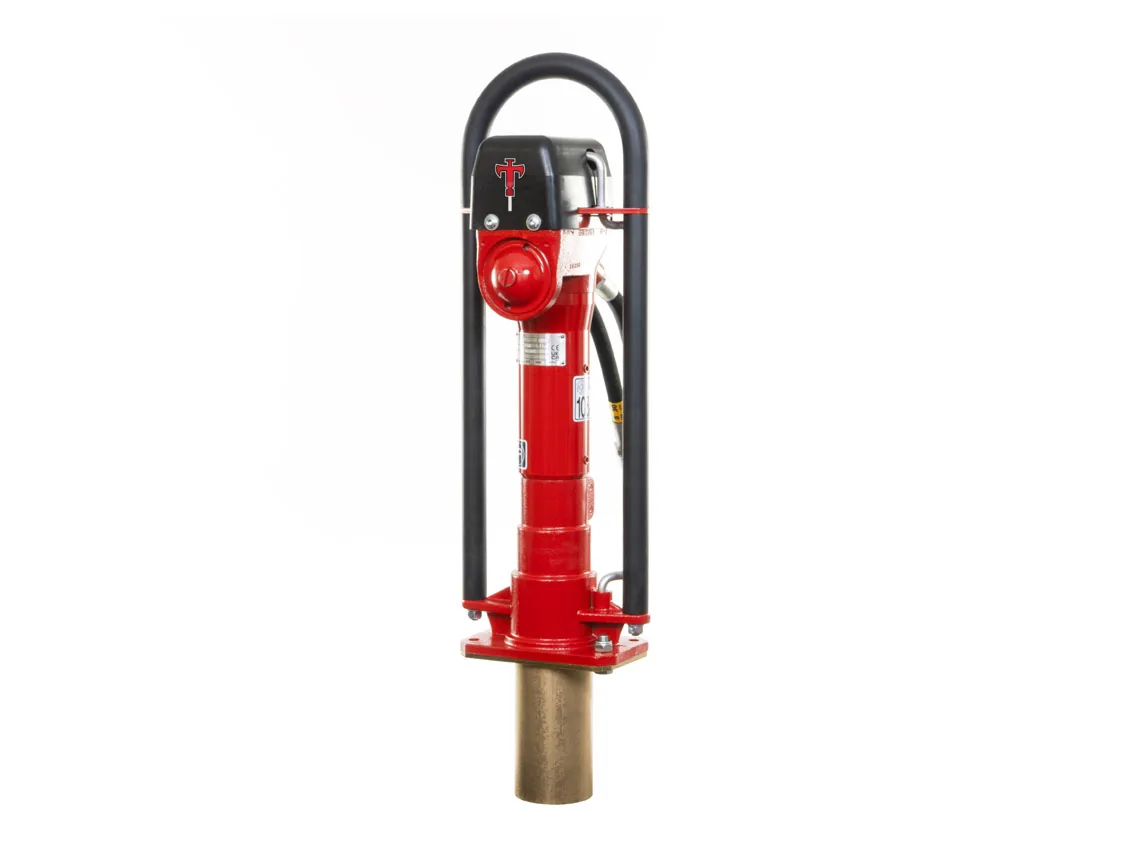

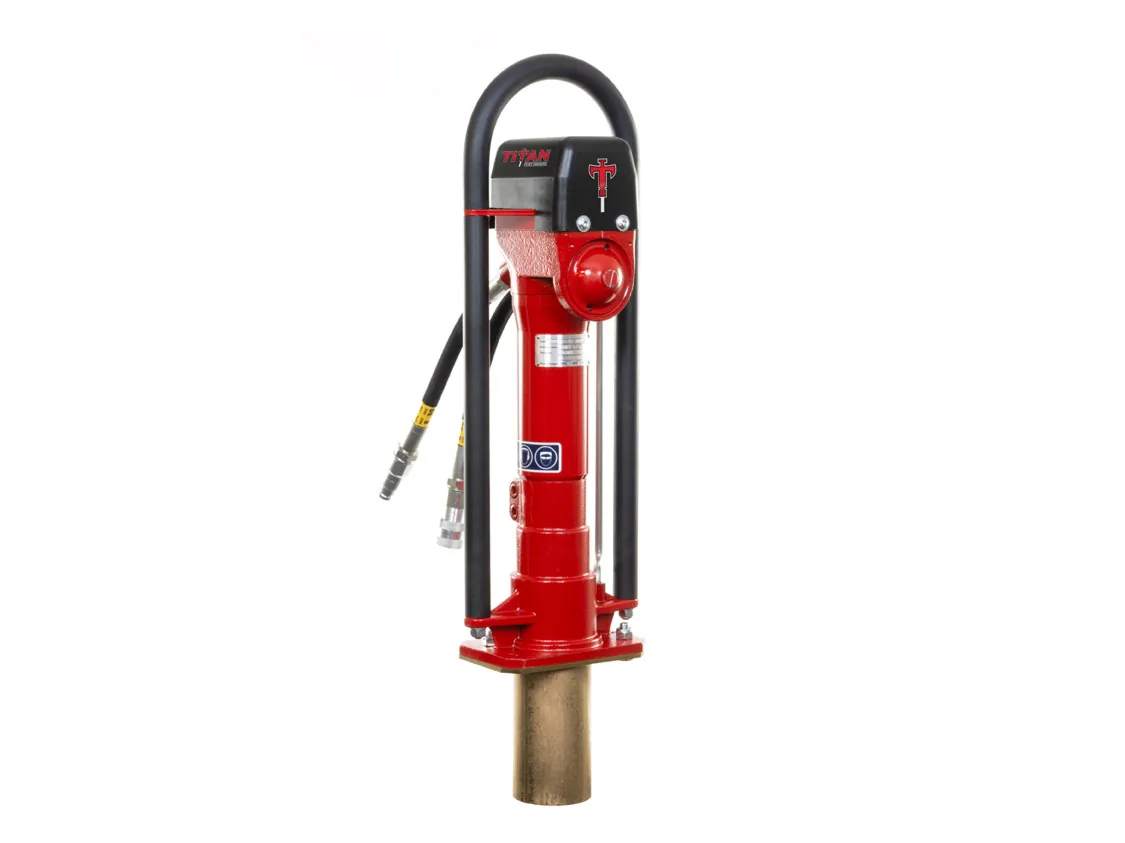

PHD6400 Hydraulic Post Driver — view 1
Contractor Series

PHD6400 Hydraulic Post Driver

SKU: PHD6400

Powerful and easy to operate, the heavy-duty Titan PHD6400 delivers dependable results in even the harshest working conditions.

Powerful and easy to operate, the heavy-duty Titan PHD6400 delivers dependable results in even the harshest working conditions. Set it on the post and engage the trigger, or when working at greater heights, place it on the post and activate it using the remote valve. With strong driving force, it delivers fast, consistent results day after day, in any weather.

Its hydraulic design means dependable, maintenance-free operation. The driver connects easily to Titan power packs as well as excavators, tractors, and other hydraulic equipment.

Common applications include fencing, road signage, forestry, vineyards, crash barrier installation, steel profiles of all kinds, anchoring, and tent stakes. An added advantage is the use of an oil flow divider, which allows the driver to be run from a wide range of hydraulic power sources such as excavators, trucks, loaders, and tractors.

Key Features

  • Operates seamlessly with hydraulic-equipped heavy equipment or the Titan PHP1400 Hydraulic Power Pack
  • Hydraulic operation provides smooth and reliable maintenance-free performance
  • Engineered to handle any weather without compromise
  • One-year limited warranty

Already own this product? Register your warranty →

Products sold through authorized dealers only. View all dealers →

Specifications & Resources

Specifications

Weight61 lbs
SERVICE WEIGHT66 lbs
DIMENSIONS9 × 7.5 × 26 in
EHTMA CATEGORYD
OIL FLOW8 GPM
WORKING PRESSURE1,750 psi
MAX. RELIEF VALVE PRESSURE2,300 psi
MAX. RETURN PRESSURE220 psi
BLOWS PER MINUTE1,380
BLOW ENERGY95 joules
MAX. OIL TEMPERATURE160°F
ACCUMULATOR CHARGING PRESSURE730 psi
COOLING CAPACITY NEEDED3 kW
VIBRATION LEVEL, 3 AXIS139 dB
VIBRATION UNCERTAINTY123 dB
SOUND PRESSURE LEVEL AT 1 METER96 dB
GUARANTEED SOUND POWER LEVEL108 dB
