Contractor Series

2000 Series Clutch Assembly

SKU: PGDWCHKIT

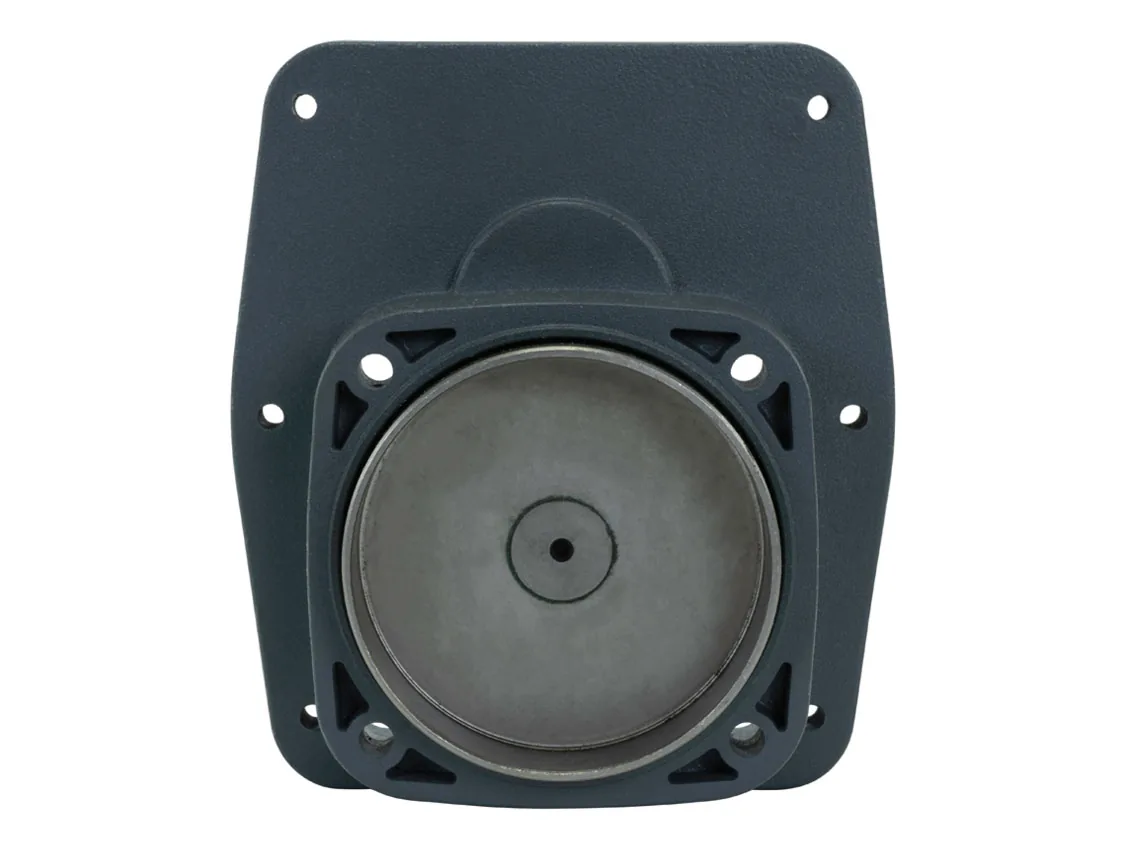

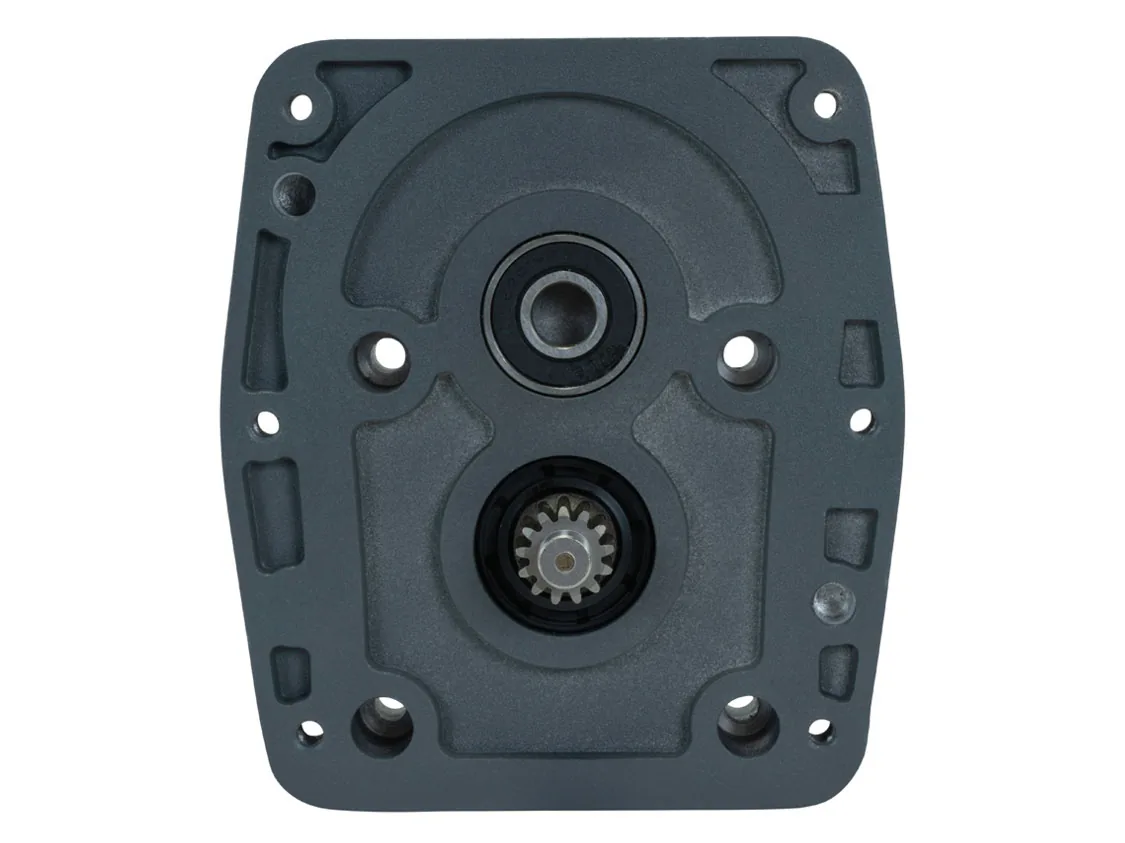

Complete clutch body assembly for PGD2000 and PGD2000X drivers. Bearings are pre-installed.

Complete clutch body assembly for PGD2000 and PGD2000X drivers. Bearings are pressed in at factory for proper alignment. No assembly required.

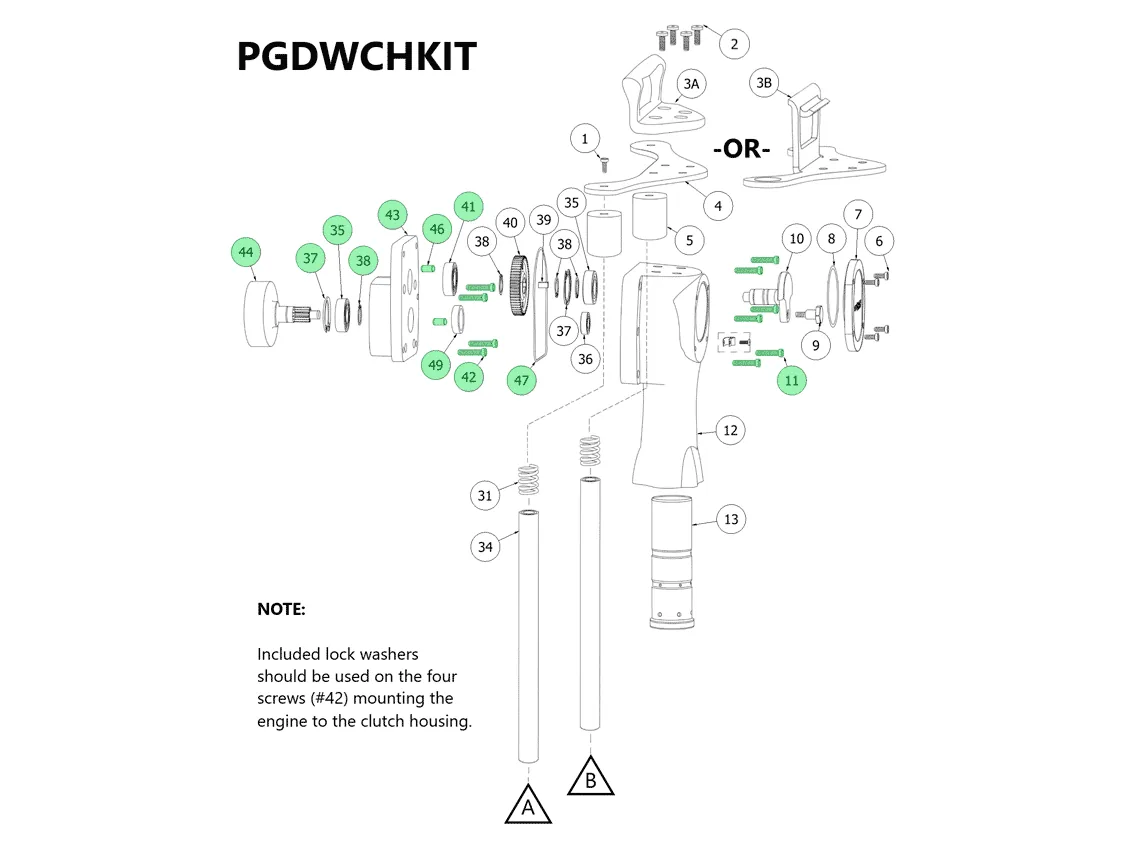

- M6×30 socket head cap screw (10 ea. — 4x housing to engine, 6x housing to upper body) - 6004-2RS bearing - 42mm snap ring - 20mm snap ring - 6201-2RS bearing - Clutch housing - Clutch drum - Alignment pin (pk 2) - Gasket clutch to body - Oil seal

Compatible With

PGD2000, PGD2000X

How to Order

Parts are available through authorized Titan dealers. Reference the part number above when contacting your dealer.

Find a Dealer Ask a Question

Back to Parts

Compatible Drivers

Works With These Products

Compatible Drivers

(2)

Contractor Series

PGD2000 Post Driver

SKU: PGD2000

A powerful and portable commercial-duty post driver. Powered by a Honda GX35 1.3hp, 4-stroke engine. The heavy-duty steel barrel accommodates up to 1 7/8" diameter post, pipe, rod, or stake.

View Details

X-Series

PGD2000X Post Driver

SKU: PGD2000X

A powerful and portable commercial duty post driver, powered by a Honda GX35 1.3hp, 4-stroke engine. The heavy-duty threaded steel barrel accommodates up to 1 7/8" diameter post, pipe, rod, or stakes.

View Details
